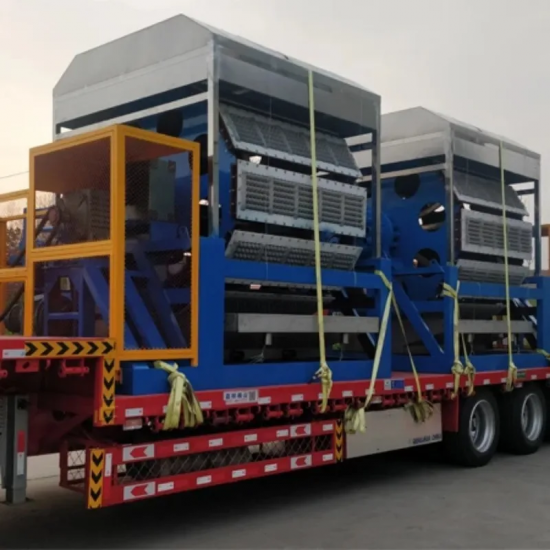

2.We ship you by sea !!!
3.Door to door please leave message or whatsapp or email for price !!!
Faye(Sales Manager)
Email: sales13yugong@yg797.com
Whatsapp/Wechat/Mobile: +86 18737172261

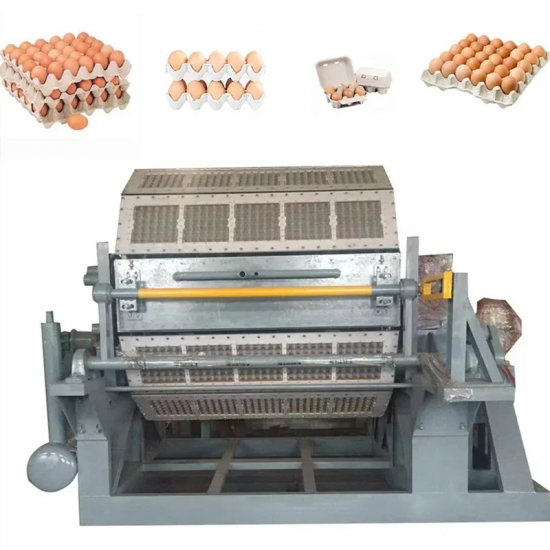

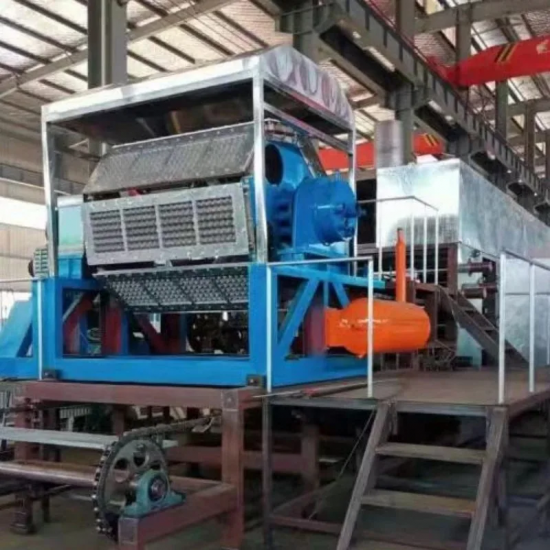

Small Business Waste Paper Recycling Carton Box Egg Tray Making Machine High Output Paper Egg Tray Making Machine
Product Description

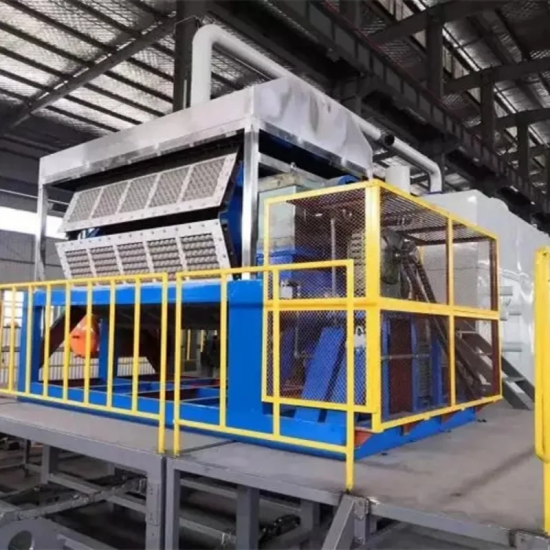

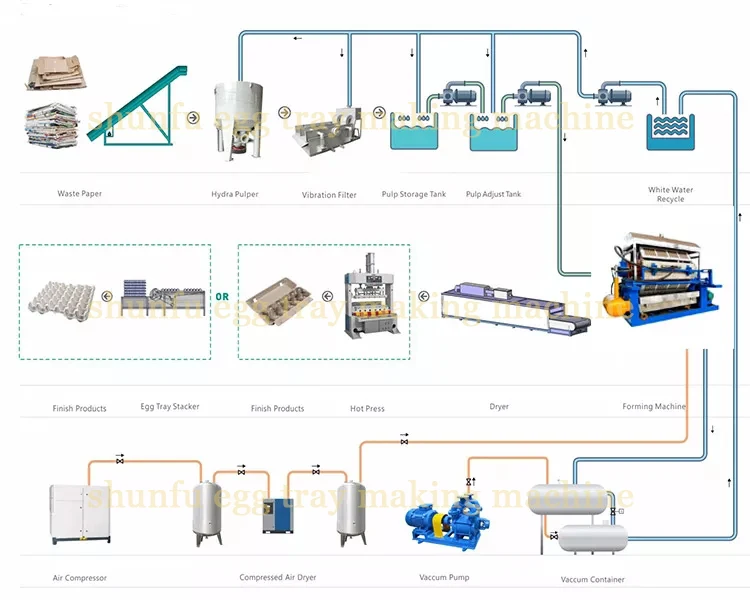

The automatic egg tray production line is composed of pulping system, forming system, drying system, stacking system, vacuum system, high pressure water system and air pressure system.Using waste newspapers, waste carton paper, office paper, scraps and other waste paper as raw materials, through hydraulic disintegration, filtration, water injection and other processes to prepare a certain concentration of slurry, through the molding system on the special metal mold through vacuum adsorption A wet blank is formed, which is then dried on a drying line, and then stacked after being hot-pressed on-line.
|
Model
|
YG-1*3
|
YG-1*4
|
YG-3*4
|
YG-4*4
|
YG-4*8
|
YG-5*8
|
|
Capacity (pcs/h)
|
1000
|
1500
|
2500
|
3500
|
4500
|
5500
|
|
Forming Mould Quantity
|
3
|
4
|
12
|
16
|
32
|
40
|
|
Total Power (kw)
|
40
|
40
|
50
|
60
|
130
|
140
|
|
Electricity Consumption (kw/h)
|
28
|
29
|
35
|
42
|
91
|
98
|
|
Worker
|
3-5
|
4-6
|
4-6
|
4-6
|
4-6
|
5-7
|
About 1000 type Egg Tray Machine,offer detail tested results for your reference:
Workshop:More than 800 square meters,Height more than 4 m .
Production capacity:3000 pcs/hour.(30-eggs tray, ~65g/pc).
Electricity consumption: ~80KW.
Water consumption:~450kgs/hour
Gas natural:40-60m3/h
Raw material: newspaper, carton paper
Raw material consumption: 105-135 kgs/hour
Workers:4~6 person
|
Machine Type:
|
5×8 Egg Tray Machine
|
|
Raw material:
|
waste paper
|
|

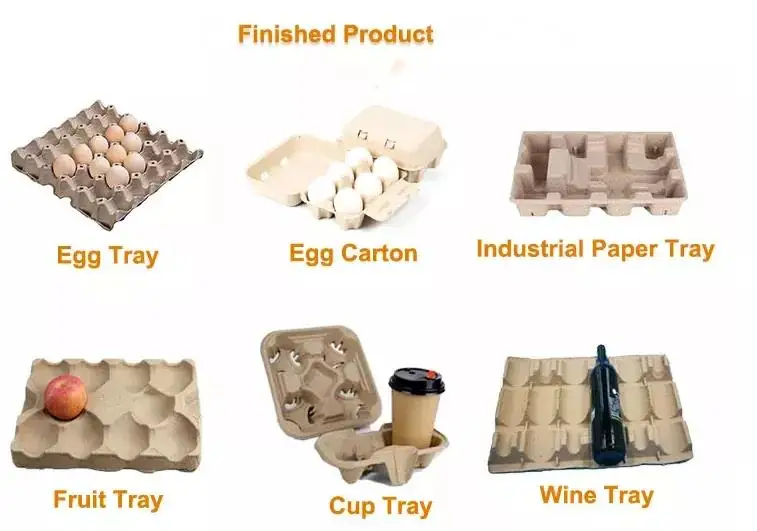

Production variety:
|
egg tray
|
|
Production speed:
|
5000- 5500 pieces/hour
|
|
Total power:
|
116 kW
|
|
Slurry concentration for molding machine:
|
0.8 - -1%
|
|
Compressed air pressure:
|
0.5-0.7mpa
|
|
Vacuum negative pressure:
|
negative 0.035-negative 0.045Mpa Voltage; 380 volts
|
|
Voltage:
|
380 volts
|
|
Frequency:
|
50 Hz
|
|

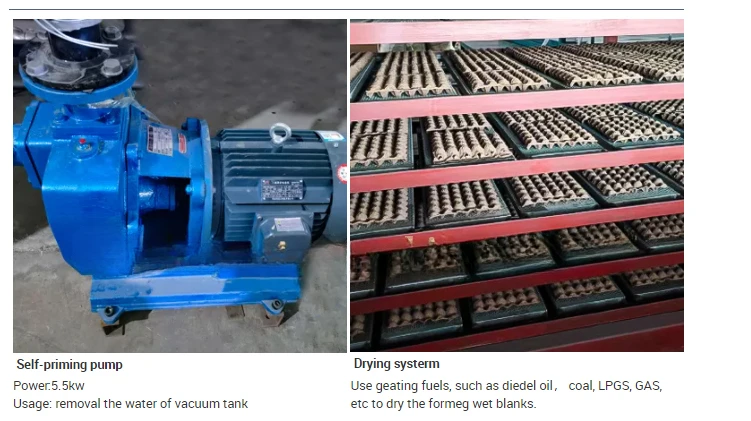

Drying method:
|
natural dryer/brick drying/metal drying
|
Features:
